NLMS block in sigma studio

Hawkward, I just checked on this and our software team says that they accidentally made this algorithm "go live" before it was completed. In the next beta, there should be an updated version of this algorithm included. The new toolbox location will be: Filters -> FIR -> Adaptive

The software team stressed that the algorithm is not quite ready yet, but I can at least show you how each pin functions.

Hopefully we can come up with a fully functional demo project soon.

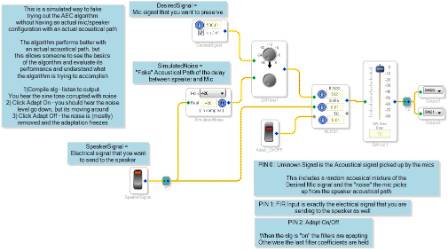

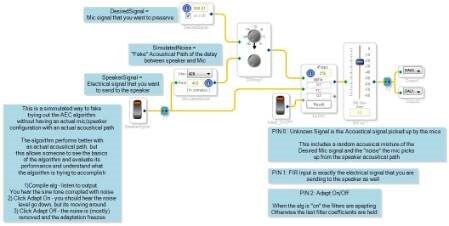

For now, here is an example of how the algorithm will work.

Please consider this algorithm to be a "work-in-progress" for the time being.

Hello BrettG,

I see...Thank you very much, that is very helpful, I'll be sure to try it out.

A few other things though :

1- What about the orange output that you left out?

2- The ''result'' button that brings up a sine in a dialog window?

3- The ''button 1'' button in that window.

Also, how soon would the beta release estimated date be?

Thanks,

Hello again BrettG,

I did try the small demo and it is not working at all for me unless I left something out.

I understand what you said about it being a WIP, but did someone try the demo in the screenshot or not? From reading what you said I am unsure if I should expect it to work a little or not.

The speaker signal I used was white noise at first, then a different tone from the desired signal, there is no cancellation, and it is more like distortion.

Thanks,

It looks like the algorithm was not working very well in version 3.4. It has been updated for 3.5. I listened to a demo yesterday and it sounded quite good. Please try it out when the 3.5 beta hits the website.

Hello Support Team,

I want to using the NLMS filter for AEC application, I have a testing for NLMS block with 1761 EVB, but the sound seems very bad. could you pls help to review my project as attached and correct me any error? tks

This question has been assumed as answered either offline via email or with a multi-part answer. This question has now been closed out. If you have an inquiry related to this topic please post a new question in the applicable product forum.

Thank you,
EZ Admin

Hello BrettG,

I also have the same question you've answered above, NLMS block in sigma studio, but the image you uploaded in this answer is not clear enough to see its details in my browser, Safari. Can you upload this image again with high resolution?

Thanks a lot.

Hello stoneli2020,

Unfortunately Brett left the company about six years ago. I looked into his old files on the server and did not find this project. When we migrated the forum onto a new platform the image was not properly translated. There is now some documentation on the Wiki that might help.

https://wiki.analog.com/resources/tools-software/sigmastudio/toolbox/filters/filterednlmsfilter

There are some other posts on the forum so do a search and that may also help.

Sorry for the issues.

Dave T
