External SPI Delay on ADAU1466

Hi Laserguru,

Thank you for your question.

The external SPI delay will work identically on the ADAU1466 and ADAU1452. In fact, any project written for the ADAU1452 will work perfectly on the ADAU1466! On the ADAU146x parts, additional features and memory were added, but no logic was removed.

I am working on an answer regarding large memory sizes and will make another post about that.

Please note that as of SigmaStudio 4.5, we are aware of some issues with the SPI Delay block and are working to fix them. In the meantime, you may wish to know these details:

Currently only one channel of delay is possible per physical RAM chip.

There is an offset in the delay you enter. The actual delay you will get is one higher than what you enter.

Because of this, you may enter values from 1 (which will give you 2 samples delay) up to Max-1 (which will give you Max samples).

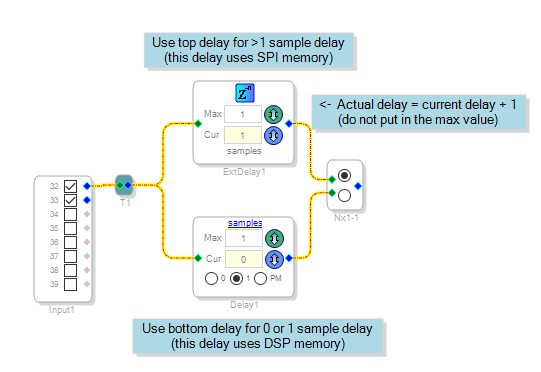

If you would like to use 0 and 1 sample delays, the schematic below may help. For delays of 0 or 1, you can use internal DSP memory, and for delays greater than 1 you can use the SPI memory.

Joshua

Hi Laserguru,

Based on a quick glance at the datasheet for the FRAM you found, I would expect that device to work with the ADAU1466 since its SPI implementation is nearly identical to SRAMs we have used in the past.

Regarding the maximum capacity you can use, the External SPI Delay block uses 24-bit addresses. Since each address corresponds to 8 bits of data, the theoretical maximum delay memory is 128MBits or 16 MBytes.

Below is a brief list of requirements for potential higher-capacity RAMs.

The device must operate at the SigmaDSP's IOVDD voltage

The device must support SPI Mode 3

Sequential read and write should be supported

The SRAM chips we have tested have one command byte and three address bytes (24 bits).

Does that answer your question?

Joshua

Thank you for the responses. This is very helpful.
