ADAU1761 single ended output vs POS-NEG

Processors & DSP PaulBKaraoke May 14, 2018 00:00 0 replies Original on forum ↗
Subscribe
PaulBKaraoke Question
May 14, 2018 00:00

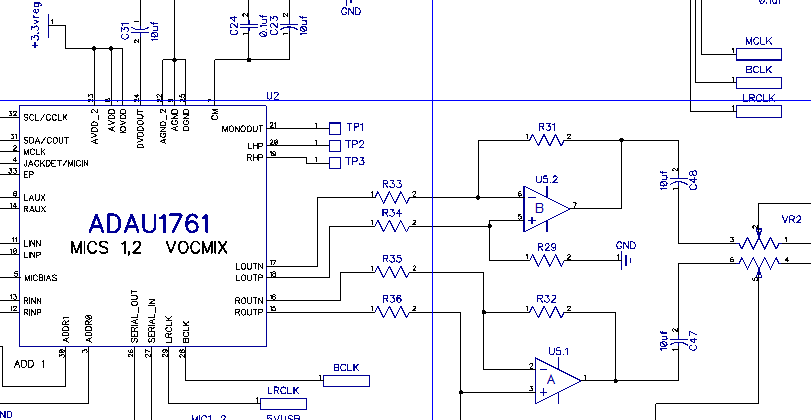

I am reviewing my design that uses 3 ADAU1761 . I am using the line outputs as differential with P & N to an op-amp that gives a single ended output. Is there any advantage to this? I am thinking that I should just use single ended outputs and reduce the circuit by removing the op amp stage. At the end of my circuit I use a balanced line driver . If I were to use single ended and remove the 1st op-amp stage, Should I put a capacitor (10uf) in series to remove the avdd/2 bias? resistors in diagram are all 10k. Op-amps and line drivers are powered with +/- 15v. The differential output becomes doubled when combined through the op-amp. I can factor that in later in the circuit. Would results be same to bypass this first stage? Any advice is appreciated.

Audio Signal Processors

SigmaDSP Audio Processors

adau1761

adau1761 differential vs single ended outputs to op-amp
