Compiler Error

SigmaDSP & SigmaStudio YLmazGNDZ May 10, 2022 00:00 1 replies Original on forum ↗
Subscribe
YLmazGNDZ Question
May 10, 2022 00:00

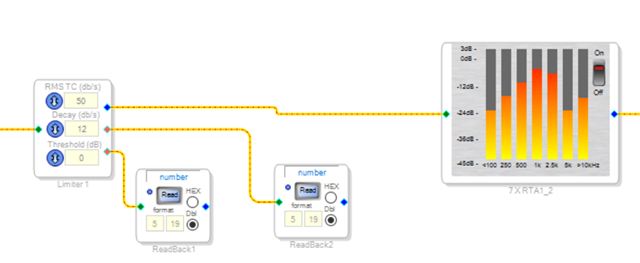

Hello. I am using Adau1701. I keep getting the following error when I add some blocks. For example, I'm using a limiter. I am doing it according to the rule as follows. What is the problem? I can't progress.

Audio Signal Processors

sigma studio

software

compiler

microcontroller

sigmastudio

SigmaDSP Audio Processors

limiters

adau1701

Show More

Rocha Reply
May 11, 2022 00:00

Hi YLmazGNDZ,

That means you've reached the dsp limit, there are ( 1019 instructions plus 5 Safeload, total is 1024 ) instruction cycles per audio sample, resulting in about 50 MIPS available,

Also can also be set up to accept double- or quad-speed inputs by reducing the number of instructions per sample that are set in the core control register to ( "507 + 5" or "251 + 5" ), 5 registers are always reserved for safeload.

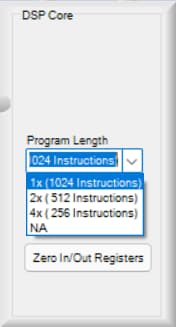

Make shure you have choosed 1X ( 1024 Instructions ), this way you can have more instructions and can fit large program.

If you need to run a larger program, it is necessary to use a dsp model that has greater capacity.

Best regards...
