Adau1467 Reverb and Echo Effect

Hello,

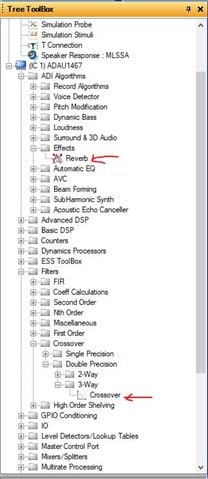

Yes , This DSP is more capable of doing your requirement. We have algorithms for reverb and 3 way crossover. Please refer below picture to find where those modules reside.

To create Echo, You should have to use various multi tap delays and delay lines with feedback etc.

So it's up to you to make of use those blocks in the library and put them together to create your own signal flow.

Regards,

Harish

Thank you, Harishgowtham. Can you send me adau1467 Echo schematic.Thank again

Hello,

Sorry, we don't have any module readily available here to create Echo. You actually have to design it. It totally depends on your need and application. It involves delay that involves samples, time, memory etc. so you basically have to calculate everything. It's up to you to design how you want those things to work in your application.

Look at Basic DSP>>DSP functions you will see various delays, feedback etc.. These are the basic building blocks.

Search roughly in the forum. You may get some idea and post related to echo creation.

Regards,

Harish

Hello Duyhieu0207,

I had an earlier project that did some of this so I added the echo and worked to polish up this design a bit. So this is an example and starting place for you. There is much more that can be done and can be adjusted but this will give you an idea of how it is done.

1452 Guitar noise gate + distortion + reverb + wow + Echo.dspproj

Dave T

Hello Dave Thib, thank you very much for sending this file to me. I really don't have the experience to create echo and reverb effects. Can you help me create an echo and reverb effect file that you think is best for singing. Thank you again
