eval-adau1467Z, sigmastudio 4.7, user guide UG-1134
Hello,
I've spent time reading the forum, but finally decided to ask here.
I've just received today my eval-adau1467Z, I followed the user guide UG1134 (showing screenshots of an older sigmastudio than the 4.7 I've installed), as it tells how to store a compiled projet into the permanent memory of the board, an how to boot from it.
Everything seems fine when I compile and deploy over the USBi, no error when I write to eeprom, but upon reset, I cannot get any sound out of my eval board, and I need to rebuild and deploy my project to hear any sound.
Please help me check whatever I could have done wrong.
I can joind the projet file if required.
Tks and regards.
Audio Signal Processors
software
4.7
adau1467
sigmastudio
SigmaDSP Audio Processors
ug-1134
evaluation_board
selfboot
Show More
as an evidence, the expected behaviour is that the board can reboot or power cycle, and retrieve the program it was running before the restart.
i did check "Check Last Compilation through the DSP", and it is successful

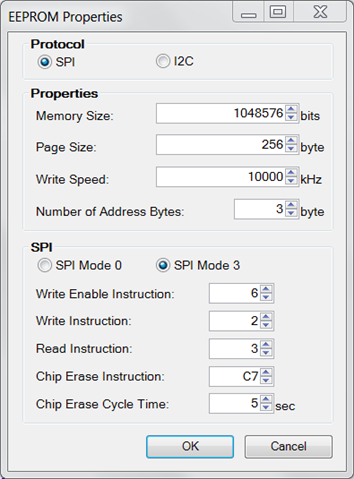

apparently , i did not use the appropriated eeprom settings (the default from sigmastudio were something else, with smaller mem size , page size, and 10KHz write speed), now the board can reboot and start the saved program correctly! these values did the trick, at least once.
