Mute with Push Button on ADAU1701?

Hello,

I am pretty happy with the Simga Studio so far, but now I ran into an pretty simple problem that I cannot solve...

Am I thinking too simple?

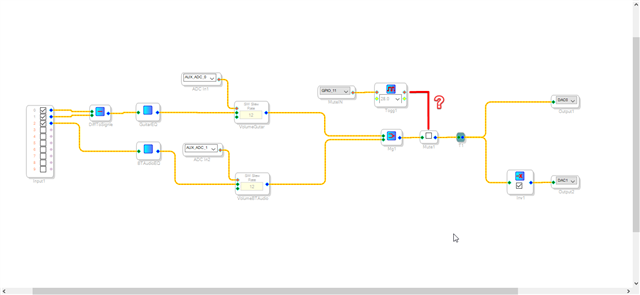

I just want to toggle a mute on my output with a button on GIPO. I am using wrong blocks?

But I was not able to finde a block with control input for external Button.

Anybody can help please?

Thanks and best regards
