Tuned each channel for ADAU1452

SigmaDSP & SigmaStudio Geraldchoi Apr 11, 2023 00:00 1 replies Original on forum ↗

ICs: ADAU1452

Geraldchoi Question

Apr 11, 2023 00:00

Dear engineer zone

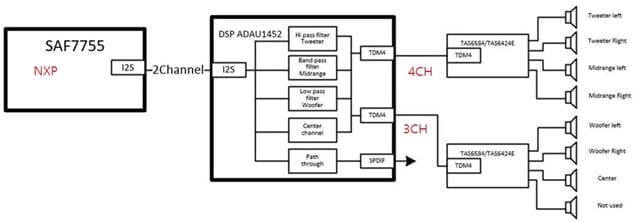

Our Customer will use 7CH Channel digital audio output of ADAU1452 as a blow block-diagram.

So, Can we adjust each channel for sound tuning?

Can we use SigmaStudio of Tool if each channel tune?

Thanks

BRS

Gerald

Audio Signal Processors

adau1452

hardware

sigmastudio

SigmaDSP Audio Processors

Report

Harishgowtham Reply

Apr 11, 2023 00:00

Hello Gerald,

I have attached a basic project where 7 channels can be individually processed and sent as two TDM4 signals. Please refer to the project. I added a crossover and a volume control for each channel just for an example. So, please edit that and add your own processing elements.

Also please adjust the serial port settings like polarity, mode etc. as you want.

6837.example.dspproj

Kindly do reply if you have any further queries.

Regards,

Harish

6837.example.dspproj72.6 KB
