Differential mode input path
Subscribe
Pls send me the path for Differential input to ADAU1761.
Will giving input to LINP and LINN is sufficient or do I need to use both left and right channel? Screenshot is attached. Pls reply quickly.
Audio Signal Processors
Audio Products
hardware
ADAU1761 DIFFERENTIAL INPUT PATH
SigmaDSP Audio Processors
adau1761
Show More

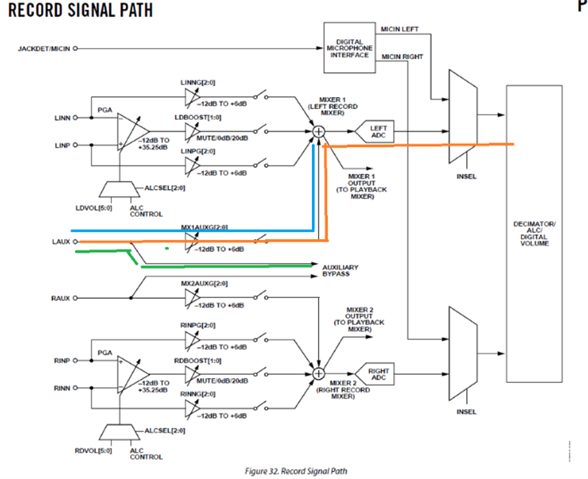

The path followed is as marked in diagram
Hello Vinaybhatt,
The LINP and LINN are designed to accept a differential input.
Dave T
