Group different read values into a contiguous memory space

Hello, which Sigma DSP are you using ?

Hello,
We're using the ADAU1787

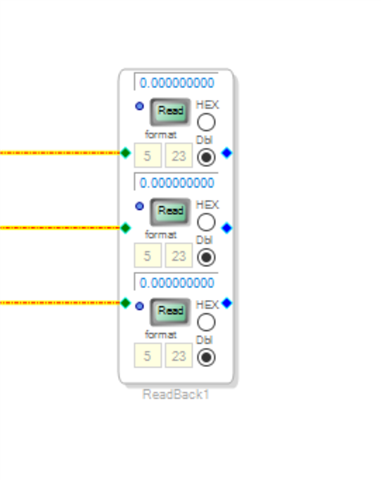

Hello, you can add readbacks to an instance and the addresses will be sequential:

if you Export system files you can see the addresses in *PARAM.h file:

/* Module ReadBack1 - DSP Readback*/
#define MOD_READBACK1_COUNT 3
#define MOD_READBACK1_DEVICE "IC1_Sigma"
#define MOD_READBACK1_ALG0_READBACKALGSIGMA2001_ADDR 8240
#define MOD_READBACK1_ALG0_READBACKALGSIGMA2001_FIXPT 0x00000000
#define MOD_READBACK1_ALG0_READBACKALGSIGMA2001_VALUE SIGMASTUDIOTYPE_FIXPOINT_CONVERT(0)
#define MOD_READBACK1_ALG0_READBACKALGSIGMA2001_TYPE SIGMASTUDIOTYPE_FIXPOINT
#define MOD_READBACK1_ALG1_READBACKALGSIGMA2002_ADDR 8244
#define MOD_READBACK1_ALG1_READBACKALGSIGMA2002_FIXPT 0x00000000
#define MOD_READBACK1_ALG1_READBACKALGSIGMA2002_VALUE SIGMASTUDIOTYPE_FIXPOINT_CONVERT(0)
#define MOD_READBACK1_ALG1_READBACKALGSIGMA2002_TYPE SIGMASTUDIOTYPE_FIXPOINT
#define MOD_READBACK1_ALG2_READBACKALGSIGMA2003_ADDR 8248
#define MOD_READBACK1_ALG2_READBACKALGSIGMA2003_FIXPT 0x00000000
#define MOD_READBACK1_ALG2_READBACKALGSIGMA2003_VALUE SIGMASTUDIOTYPE_FIXPOINT_CONVERT(0)
#define MOD_READBACK1_ALG2_READBACKALGSIGMA2003_TYPE SIGMASTUDIOTYPE_FIXPOINT

Hello,
Thank you ! That is exactly what we need.
