any way to generate harmonic from basic frequency?
Hello
The previous analog design uses a JFET input, while the new design uses an OPAMP + DSP(ADC/DAC) to do signal processing.

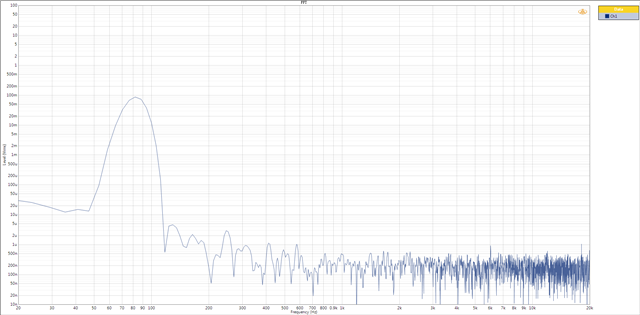

need to know how to generate harmonic from

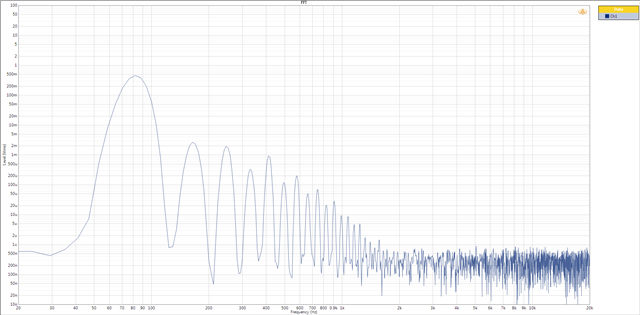

to
Best regards
Power Pan
Audio Signal Processors
software
sigmaStudio 4.7
adau1761 adau1701
SigmaDSP Audio Processors
adau1761
Show More
The multiplier could work, but I don't want to put so many multipliers there. any better way out?
Hello Powerpan,
Please have a look at this thread and see if it's helpful.
Regards,
Harish
Hello Harish,
saw the link but it doesn't help. I use multipliers + hardware clip I made it.
Best regards,
Pan
Hello PowerPan,
Have you looked at this block to see if it would work for you?
Pitch Transposer [Analog Devices Wiki]
Dave T
Hello Dave
thanks for your hint, I tried but it didn't work. the shifted frequency is not exactly 2 times the fundamental frequency(position right most) compared to the multiplier.
Best regards
Power Pan
