SIGMA STUDIO FIRST PROJECT

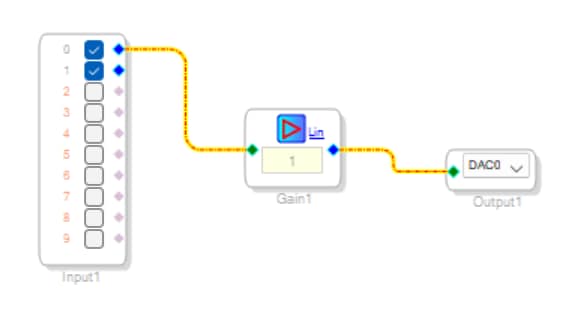

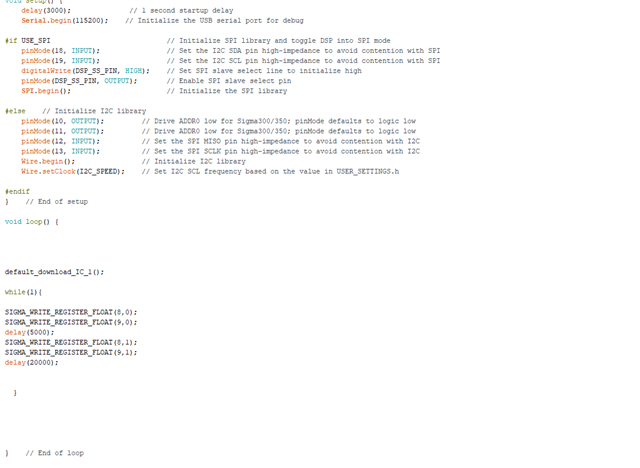

i made this project , simple volume control and generated files by link , compile, download. . then using codes integrated this to existing processor code having adau1761 configuration and differential loopback logic . but on varying gain value in code did not got any response. kindly help

Fullscreen
sigma_loader.cc.txt
Download

#include <stdint.h>
#include <stdio.h>

#include "sigma_loader.h"
#include "sigma_program.h"

#define ADAU1761_DSP_RUN_REG 0x40F6
#define SIGMA_PROGRAM_BASE 0x0800
#define SIGMA_GAIN_ADDR 8

static int sigma_stop_dsp(audio_codec *codec)
{
uint8_t v = 0x00;
codec->writeCodecBytes(ADAU1761_DSP_RUN_REG, &v, 1);
return 0;
}

static int sigma_start_dsp(audio_codec *codec)
{
uint8_t v = 0x01;
codec->writeCodecBytes(ADAU1761_DSP_RUN_REG, &v, 1);
return 0;
}

static int sigma_load_program(audio_codec *codec)
{
for (int i = 0; i < SIGMA_PROGRAM_WORDS; i++)
{
codec->writeCodecBytes(SIGMA_PROGRAM_BASE + i, sigma_program[i], 5);
}

return 0;
}

int sigma_set_gain_mute(audio_codec *codec)
{
uint8_t gain[4] = {0x00, 0x00, 0x00, 0x00}; // Gain = 0
codec->writeCodecBytes(SIGMA_GAIN_ADDR, gain, 4);
return 0;
}

int sigma_set_gain_normal(audio_codec *codec)
{
uint8_t gain[4] = {0x00, 0x80, 0x00, 0x00}; // Gain = 1.0
codec->writeCodecBytes(SIGMA_GAIN_ADDR, gain, 4);
return 0;
}

int sigma_set_gain_half(audio_codec *codec)
{
uint8_t gain[4] = {0x00, 0x40, 0x00, 0x00}; // Gain = 0.5
codec->writeCodecBytes(SIGMA_GAIN_ADDR, gain, 4);
return 0;
}

int sigma_load_gain0_program(audio_codec *codec)
{
sigma_stop_dsp(codec);
sigma_load_program(codec);
sigma_set_gain_mute(codec);
sigma_start_dsp(codec);

printf("SigmaStudio Gain=0 program loaded\n");
return 0;
}

Fullscreen
sigma_loader.h.txt
Download

#ifndef SIGMA_LOADER_H
#define SIGMA_LOADER_H

#include "audio_codec.h"

int sigma_load_gain0_program(audio_codec *codec);
int sigma_set_gain_mute(audio_codec *codec);
int sigma_set_gain_normal(audio_codec *codec);
int sigma_set_gain_half(audio_codec *codec);

#endif

Fullscreen
sigma_program.h.txt
Download

#ifndef SIGMA_PROGRAM_H
#define SIGMA_PROGRAM_H

#include <stdint.h>

static const uint8_t sigma_program[][5] = {
{0x00, 0x00, 0x00, 0x00, 0x00},
{0xFE, 0xE0, 0x00, 0x00, 0x00},
{0xFF, 0x34, 0x00, 0x00, 0x00},
{0xFF, 0x2C, 0x00, 0x00, 0x00},
{0xFF, 0x54, 0x00, 0x00, 0x00},
{0xFF, 0x5C, 0x00, 0x00, 0x00},
{0xFF, 0xF5, 0x08, 0x20, 0x00},
{0xFF, 0x38, 0x00, 0x00, 0x00},
{0xFF, 0x80, 0x00, 0x00, 0x00},
{0x00, 0x00, 0x00, 0x00, 0x00},
{0x00, 0x00, 0x00, 0x00, 0x00},
{0xFE, 0xE8, 0x0C, 0x00, 0x00},
{0xFE, 0x30, 0x00, 0xE2, 0x00},
{0x00, 0x00, 0x00, 0x00, 0x00},
{0x00, 0x00, 0x00, 0x00, 0x00},
{0x00, 0x00, 0x00, 0x00, 0x00},
{0x00, 0x00, 0x00, 0x00, 0x00},
{0x00, 0x00, 0x00, 0x00, 0x00},
{0x00, 0x00, 0x00, 0x00, 0x00},
{0xFF, 0xE8, 0x07, 0x20, 0x08},
{0x00, 0x00, 0x06, 0xA0, 0x00},
{0xFF, 0xE0, 0x00, 0xC0, 0x00},
{0xFF, 0x80, 0x07, 0x00, 0x00},
{0x00, 0x00, 0x00, 0x00, 0x00},
{0xFF, 0x00, 0x00, 0x00, 0x00},
{0xFE, 0xC0, 0x22, 0x00, 0x27},
{0x00, 0x00, 0x00, 0x00, 0x00},
{0xFE, 0xE8, 0x1E, 0x00, 0x00},
{0xFF, 0xE8, 0x01, 0x20, 0x00},
{0xFF, 0xD8, 0x01, 0x03, 0x00},
{0x00, 0x07, 0xC6, 0x00, 0x00},
{0xFF, 0x08, 0x00, 0x00, 0x00},
{0xFF, 0xF4, 0x00, 0x20, 0x00},
{0xFF, 0xD8, 0x07, 0x02, 0x00},
{0xFD, 0xA5, 0x08, 0x20, 0x00},
{0x00, 0x00, 0x00, 0xE2, 0x00},
{0xFD, 0xAD, 0x08, 0x20, 0x00},
{0x00, 0x08, 0x00, 0xE2, 0x00},
{0x00, 0x00, 0x08, 0x20, 0x00},
{0x00, 0x10, 0x00, 0xE2, 0x00},
{0x00, 0x00, 0x00, 0x00, 0x00},
{0x00, 0x15, 0x08, 0x20, 0x00},
{0xFD, 0xB0, 0x00, 0xE2, 0x00},
{0x00, 0x00, 0x00, 0x00, 0x00},
{0xFE, 0x30, 0x00, 0x00, 0x00},
{0x00, 0x00, 0x00, 0x00, 0x00},
{0xFE, 0xC0, 0x0F, 0x00, 0x00},
{0x00, 0x00, 0x00, 0x00, 0x00}
};
// add all remaining rows from your hex_program_data.dat
};

#define SIGMA_PROGRAM_WORDS (sizeof(sigma_program) / sizeof(sigma_program[0]))

#endif

does this mean to disable mixer loopback and loopback to be done in sigma studio?
