Does ADI have a psycho-acoustic bass enhancement algorithm block available for the ADAU1701?

Hello,

The SuperBass block does part of what you're looking for. It generates harmonics for tones below a cutoff frequency. However, it does not suppress the fundamental. I would recommend that you use SuperBass followed by a high pass filter to achieve that.

On the ADAU1701, SuperBass can be found in ADI Algorithms -> Dynamic Bass -> Stereo -> SW Slew -> SuperBass.

Regards,

Tyler

Thanks for the help Tyler. I did not find any information about it in the Help Content. Do you know where I could find more information on the operation of this algorithm?

Hello Tyler,

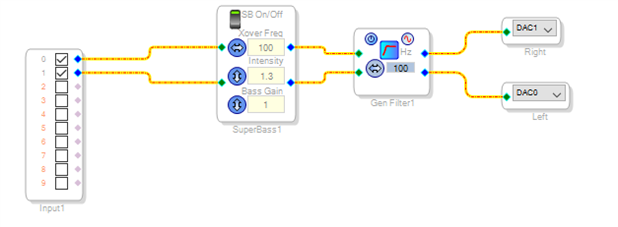

That's an interesting discovery you made. The Bass Gain parameter (shown circled red below) should cut the bass below the crossover frequency, but a quick test shows it doesn't work that way. It seems to adjust the generated harmonics more than the fundamental bass! As you have suggested, adding a HP filter does a much better job.

Best regards,

bob

Hello,

More information about the SuperBass block can be found here: SuperBass [Analog Devices Wiki]

And thanks for the test, Bob! I'll bring that up to the software team.

Regards,

Tyler

HI everyone,

SuperBass does not work on my ADAU1701MiniZ board : no sound.

Value is 0, when SB is on (green) and 1 when SB is red (off).

In both cases : no sound.

DynamicBassBoost works well.

Did you meet this issue ?

Thank you.

GB

To be more clear :

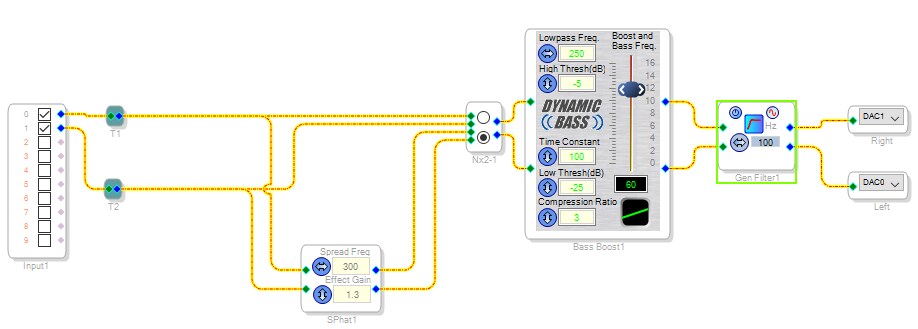

This setup works.

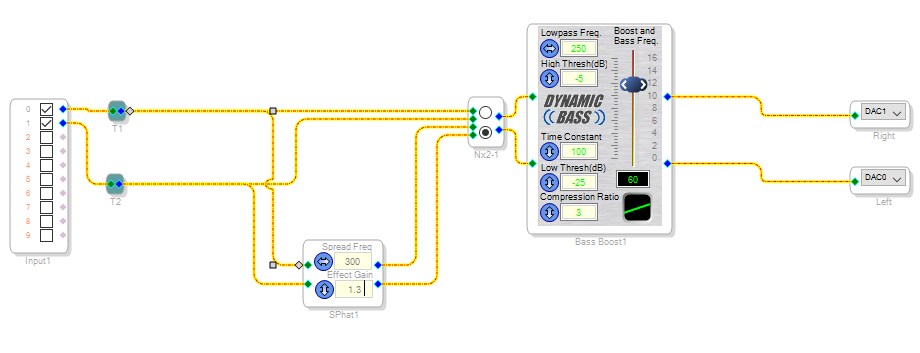

This setup works too.

This one works too.

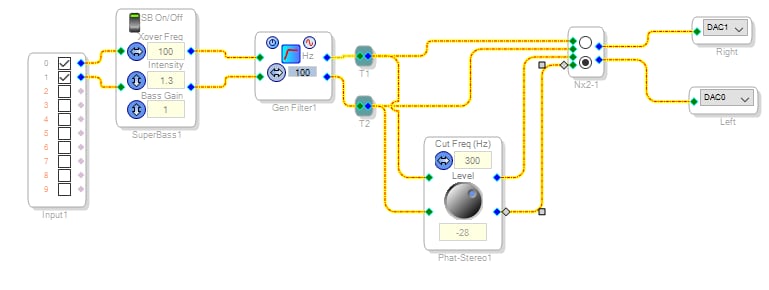

This one does not work, no sound.

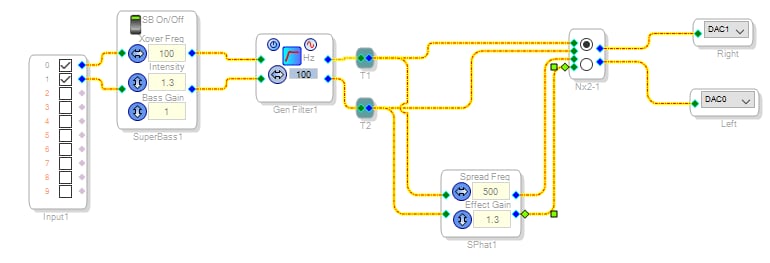

And the following setup (what I want to use) does not supply any sound.

Quiet strange !

Any advice is welcome.

Thank you.

GB

Hi GB,

I replicated the schematics that you said do not give any sound, but I did not have any problem with them... Would you mind attaching your SigmaStudio files so I can test them out? This would help us narrow down your issue.

Regards,

Tyler

HI Tyler,

Thank you for your reply.

I tested again today and ... it works !

Sorry for my post,

Best regards,

GB
