ADAU1451 I2C data hold time

SigmaDSP & SigmaStudio Sam.S Apr 24, 2016 00:00 3 replies Original on forum ↗
Subscribe
Sam.S Question
Apr 24, 2016 00:00

Dear Sir,

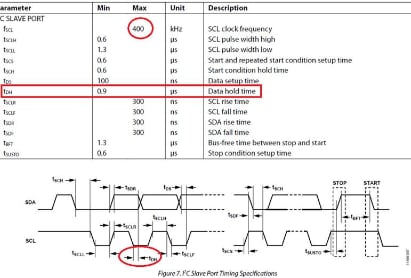

According ADAU1451 datasheet description as below:

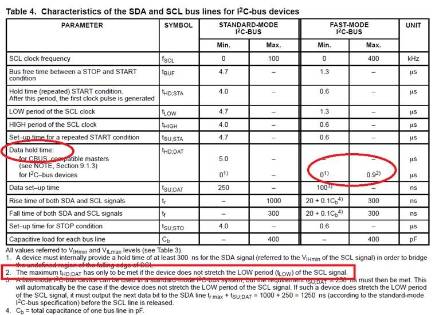

But it's seem against the I2C spec. description as belo

Our customer use 400KHz I2C, datasheet define “data hold time is >= 0.9us”.

But I2C standard define “data hold time is 0 ~ 0.9us”, ADAU1451 is out of spec.

If not a typo, is there allowance range of data hold time?

Our customer's product have another chip with inverse limitation: “data hold time <= 0.9us”.

To meet both two chip, they must set data hold time to exactly 900us, but it is hard to always accuracy.

Would you please confirm if it is typo.

Thank you!

Audio Signal Processors

adau1451

SigmaDSP Audio Processors

DaveThib Reply
Apr 25, 2016 00:00

Hello Sam,

I will investigate this further.

Dave T

Sam.S Reply
Apr 27, 2016 00:00

Dear Dave,

Thank you for your kindly reply !!

Sam

DaveThib Reply
Apr 27, 2016 00:00

Hello Sam,

I spoke with the test engineer on this matter and he said that the part well exceeds all I2S standard specifications. So in the datasheet the intention was simply to write the standard specification but it was listed as a Min instead of a Max. As long as other parts in the system are within I2C specifications then this part will function properly. So the specification should be written as <=.9us.

Thanks for pointing this out.

Dave T
