enik Question

Aug 25, 2015 00:00

Hi,

I´m using adau1451 and sigmastudio 3.12.2

The standard RMS COmpressor with independent L&R input not working in LINKED mode in which case the greater signal of L or R will drive the compression.

IN unlinked mode this work fine, but in linked mode this not respond to atack, release and ratio configured

somebody has tried?

Thanks

Nicolas

Audio Signal Processors

adau1451

adau145x

SigmaDSP Audio Processors

Report

Wilfrido Reply

Sep 2, 2015 00:00

Hello Nico,

We found a bug on such compressor. We did a fix and will be available on the next SigmaStudio release.

WIlfrido.

Report

KJBob Reply

Sep 2, 2015 00:00

Hello,

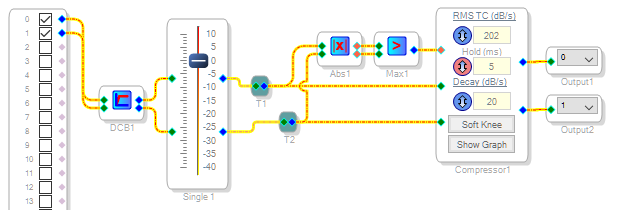

While waiting for the fix you could try an External Detector Input version of the dual RMS Compressor, with logic to select the higher input as shown below:

Best regards,

Bob


Report

enik Reply

Sep 4, 2015 00:00

Hello Wilfrido

thanks for the response

thanks for your comments, Bob !!

yes already implemented , but with a fast avg env. in the input of sidechain,

Regards

Nico

Report

EZAdministrator Reply

Aug 2, 2018 00:00

This question has been assumed as answered either offline via email or with a multi-part answer. This question has now been closed out. If you have an inquiry related to this topic please post a new question in the applicable product forum.

Thank you,
EZ Admin
