ADAU1761 - How would you maximize Signal-to-Noise ratio for small acoustical signals?

Hi everyone,

I need to measure very low Sound Pressure Level signals (range -15 to max 30 dB(SPL)). I have designed a very good pre-amp with differential connection to the DSP ADCs, I setted the gain of my pre-amp to saturate my ADC input range for around 85dB(SPL).

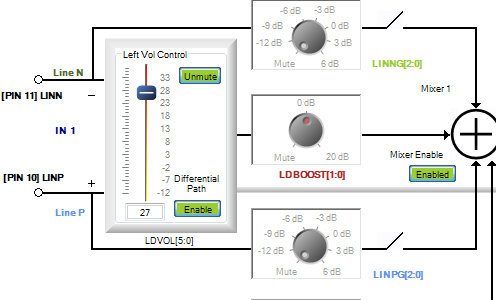

At the moment I am using differential mode with input volume at 27 and 0dB Gain LDBOOST:

With this config and some software gains in my algorithm schematic, I am able to measure levels around 0dB(SPL) to 30+dB(SPL) without much difficulty.

I'd like to improve the SNR to be able to measure around -10dB(SPL) to 30+dB(SPL) with more stability (accuracy). Is it better to boost the LDVOL or LDBOOST or lower them and Boost my software gains, or keep everything the way I setted it? Do you know other easy tricks with algorithms or whatever that can boost SNR for low level signals?

Thanks!
