ADAU1761 - How would you do a Phase Locked Loop?

SigmaDSP & SigmaStudio vnadon_B_ING Jul 10, 2015 00:00 2 replies Original on forum ↗

vnadon_B_ING Question

Jul 10, 2015 00:00

Hi everyone,

I did my own version of a Phase Locked Loop, like normally used for frequency modulation. Everything works fine in SigmaStudio, but when I transport it to a microcontroller I have some bugs.

Therefore, I was wondering if you have ideas to make a Phase Locked Loop? I just want to brainstorm on some ideas to debug my SigmaStudio project Of course if I show you the answer you would probably simply conquer with my method or try to debug it so...

Thanks!

Audio Signal Processors

sigma studio

micro controller

pll lock

SigmaDSP Audio Processors

adau1761

SigmaDSP

Report

KJBob Reply

Nov 9, 2016 00:00

Hello,

Since your project works when downloaded from SigmaStudio but not through your microcontroller, there could be an issue with your microcontroller program -- the way it sends the initial program load to the DSP. Perhaps you could have your microcontroller load a simple pass-through project to your -1761 and see if it works.

Software PLLs in SigmaStudio inevitably require use of the Feedback block. A known difficulty with this block is described in this post: https://ez.analog.com/message/226538?commentID=226538#comment-226538

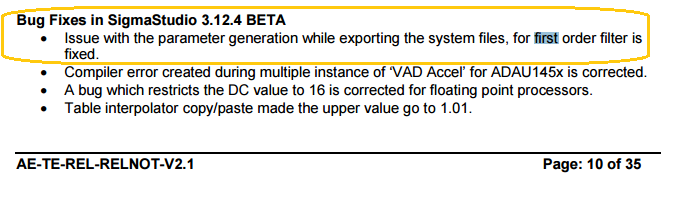

One other possibility if you're using a General First-Order Filter in your loop, with a version of Sigmastudio older than 3.12.4:

Best regards,

Bob



Report

EZAdministrator Reply

Aug 2, 2018 00:00

This question has been assumed as answered either offline via email or with a multi-part answer. This question has now been closed out. If you have an inquiry related to this topic please post a new question in the applicable product forum.
