ADAU1761 - Feedback module causes problem in Microcontroller integration

HI Vincent:

I have a feeling that you might not be clearing the memory on the part when you first initialize the part and the feedback is causing for the algorithm to blow up. Please consider writing 0 to all memories in the parameter space before running the code.

Regards

Miguel

Hi,

I don't understand how to do this. Do you mean writing 0x00, ..., 0x00... to all addresses in my DSP, and then write the good parameter values back in for each block? Using the SIGMA_WRITE_REGISTER?

example:

ADI_REG_TYPE Nx4_0[4] = {0x00, 0x00, 0x00, 0x00};

SIGMA_WRITE_REGISTER_BLOCK(DEVICE_ADDR_IC_3, MOD_EXTRACT_ALGO_NX1_3_2_ALG0_STAGE0_MONOSWITCHNOSLEW_ADDR, 4, Nx4_0);

...

I noticed that my Division block (which is located in one of the Feedback paths) has some values = 15.99 which could make the Feedback blow up...

Could you explain me what is these values mean? Do they represent an input value of the division or just some coefficient inside the division block?

/* Module x/y 2 - Divide*/

#define MOD_BOARD3_XY2_COUNT 33

#define MOD_BOARD3_XY2_DEVICE "IC3"

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB20_ADDR 84

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB20_FIXPT 0x07FFDF3B

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB20_VALUE SIGMASTUDIOTYPE_FIXPOINT_CONVERT(15.999)

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB20_TYPE SIGMASTUDIOTYPE_FIXPOINT

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB21_ADDR 85

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB21_FIXPT 0x07FFDF3B

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB21_VALUE SIGMASTUDIOTYPE_FIXPOINT_CONVERT(15.999)

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB21_TYPE SIGMASTUDIOTYPE_FIXPOINT

...

...

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB218_ADDR 102

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB218_FIXPT 0x07FFDF3B

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB218_VALUE SIGMASTUDIOTYPE_FIXPOINT_CONVERT(15.999)

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB218_TYPE SIGMASTUDIOTYPE_FIXPOINT

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB219_ADDR 103

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB219_FIXPT 0x04000000

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB219_VALUE SIGMASTUDIOTYPE_FIXPOINT_CONVERT(8)

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB219_TYPE SIGMASTUDIOTYPE_FIXPOINT

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB220_ADDR 104

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB220_FIXPT 0x02000000

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB220_VALUE SIGMASTUDIOTYPE_FIXPOINT_CONVERT(4)

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB220_TYPE SIGMASTUDIOTYPE_FIXPOINT

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB221_ADDR 105

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB221_FIXPT 0x01000000

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB221_VALUE SIGMASTUDIOTYPE_FIXPOINT_CONVERT(2)

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB221_TYPE SIGMASTUDIOTYPE_FIXPOINT

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB222_ADDR 106

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB222_FIXPT 0x00800000

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB222_VALUE SIGMASTUDIOTYPE_FIXPOINT_CONVERT(1)

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB222_TYPE SIGMASTUDIOTYPE_FIXPOINT

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB223_ADDR 107

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB223_FIXPT 0x00400000

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB223_VALUE SIGMASTUDIOTYPE_FIXPOINT_CONVERT(0.5)

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB223_TYPE SIGMASTUDIOTYPE_FIXPOINT

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB224_ADDR 108

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB224_FIXPT 0x00200000

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB224_VALUE SIGMASTUDIOTYPE_FIXPOINT_CONVERT(0.25)

#define MOD_BOARD3_XY2_ALG0_DIVISIONALGDB224_TYPE SIGMASTUDIOTYPE_FIXPOINT

...

...

Thanks for helping!

HI Vincent:

It's just a coefficient. I guess you are right. Before clearing the memory, try reading back the parameter values to see if all the values are correctly written when using the uC.

In other words, Write the parameters and programs from the uC. Disconnect the uC (if possible). Connect USBi and read back all content.

This will most likely tell you what's different.

You probably already tried this right?

Miguel

Hi Miguel,

You probably already tried this right?

No actually I didn't. I cannot really disconnect the uC per say, but I do can switch the SDA and SCL pins so that the USBi has control after programming the DSP. But then will SigmaStudio read the values from the DSP without recompiling+Downloading?

I will try to see.

Thanks,

Vincent

Okay so I tried your trick (thanks a lot BTW it is very useful and I never thought of it...)

Here are my results, they match the behavior I get when downloading the code from the uC and using the uC solely. I also tried downloading with SigmaStudio and then reading with the uC and everything reads well. So the problem really comes from when I download the code from uC to DSP.

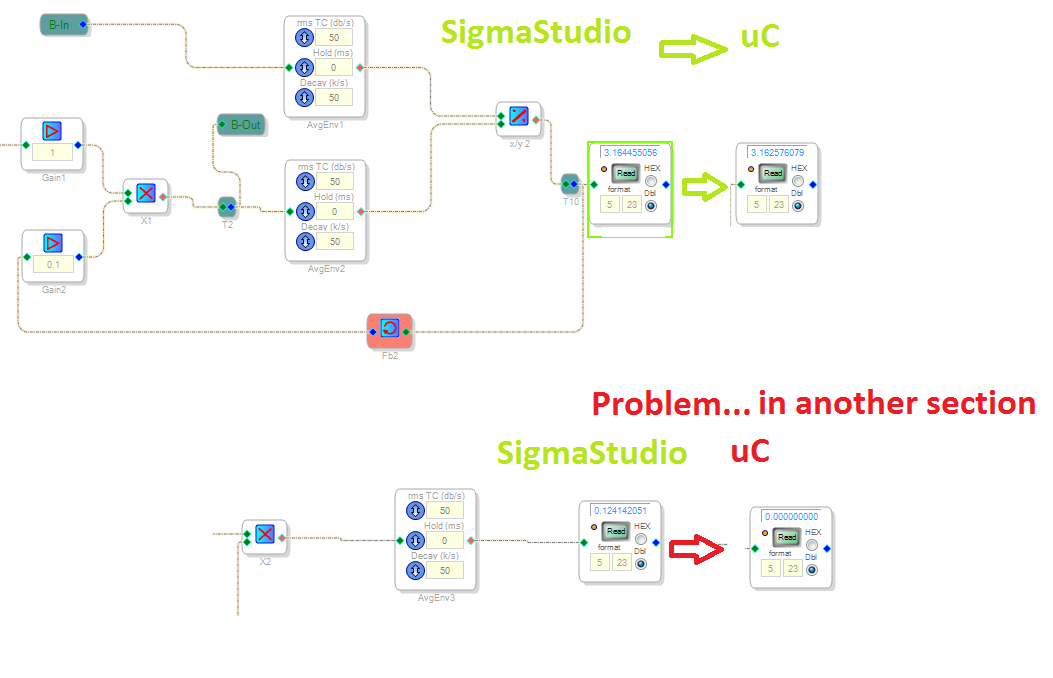

Here is a figure to explain a bit:

This question has been assumed as answered either offline via email or with a multi-part answer. This question has now been closed out. If you have an inquiry related to this topic please post a new question in the applicable product forum.

Thank you,
EZ Admin
