ADAU1761 at non-audio sample rate (i.e. 51200)
Assuming i used a 26.2144MHZ MCLK instead of 24.5760MHZ, is there any problems with running the ADAU1761 at 51.2 kHz instead of 48kHz? The filter coeffs would be designed at 51.2 kHz.
Audio Signal Processors
adua1701
SigmaDSP Audio Processors
adau1761
Hello,

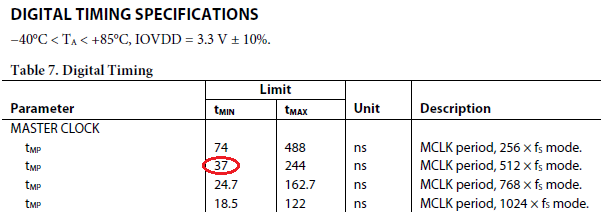

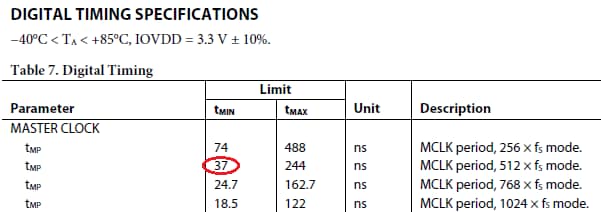

Yes this is permissible. The data sheet allows for a MCLK period as short as 37 nS in 512 x fs mode. This corresponds to MCLK as high as 27 MHz, or a sample rate of 52.7 KHz. Thus, 51200 is fine.

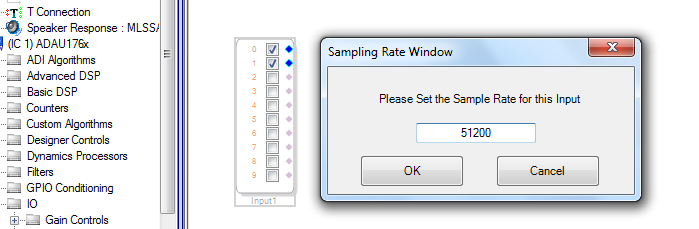

You can have SigmaStudio compute filter coefficients for your new sample rate by right-clicking your input cell and entering the rate:
Best regards,
Bob
This question has been assumed as answered either offline via email or with a multi-part answer. This question has now been closed out. If you have an inquiry related to this topic please post a new question in the applicable product forum.
Thank you,
EZ Admin
