ADAU1761 Volume cnotrol register and gain value

Hi All

In ADAU1761 application, we want change volume ( gain) , by write IIC :

such as IIC_TX( 0x00,0x0A,0x00,0x80,0x00,0x00) ,IIC_TX( 0x00,0x0D,0x00,0x80,0x00,0x00)

1. why the single volume shared in Sigma , its sub address is 0x0A,0x0D. what is the resisger address in 1761 datasheet?

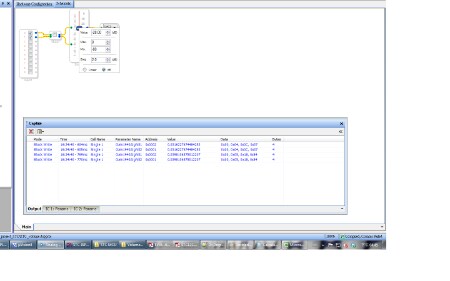

2. How can we get a list shown gain and value of resister , like the EXCEL shown. thus we can change volume by send IIC

we donot mind the Param Value. we want the gain value and relatived to the register value .

Meican.
