Booting from uC, buffering Parameter & Program Data
While booting ADAU1761 should I be able to split the block writes of Parameter Data as long as I manually increment the address every 4 Bytes or are there memory discontinuities forcing me to do a single block write? I was doing this successfully with Program Data (except 5 bytes wide) for small projects but once I started chopping up Parameter Data into 62 byte i2c block writes I ran into problems, wanted to confirm while I debug, thanks!
Audio Signal Processors
i2c
microcontroller
SigmaDSP Audio Processors
adau1761
adau1761_boot
Show More
Yes, you should be able to split the block writes, as long as you write in multiples of 4 bytes.

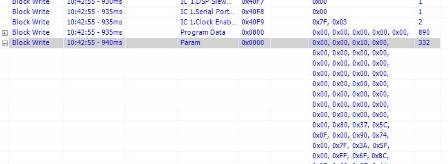

SigmaStudio writes the entire parameter RAM as a single block write:
You can split it up if you need to.
Thanks Brett, probably a bug in my code then...
