ADAU1761] Microphone input to I2S output
Hello,
I intend to develop a microphone module with ADAU1761.
When mic input is routed to I2S output, it seems like any module of included in sigmastudio is not applicable.
That is, mic input is bypassed to I2S output although I put a few of module as noise removal in the signal path.
But when mic input is routed to HP OUT, I can listen to voice processed from HP OUT.
My question is that does ADAU1761 always bypass without any process in case mic input is routed to I2S output? Or is it due to my wrong configuration?
Best Regards,
Mack
Audio Signal Processors
i2s_output
microphone
SigmaDSP Audio Processors
adau1761

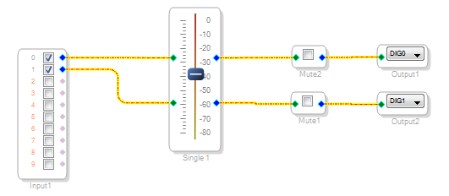

I could fix my problem by changing outputs from DAC0/1 to DIG0/1. The cause was because wrong outputs were allocated for I2S(ADC_SDATA).
DIG0/1 should be chosen for I2S.
Best Regards,
Mack
This question has been assumed as answered either offline via email or with a multi-part answer. This question has now been closed out. If you have an inquiry related to this topic please post a new question in the applicable product forum.
Thank you,
EZ Admin
