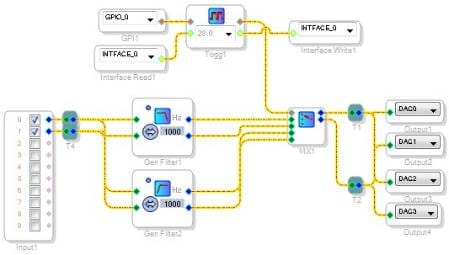

Pushbutton Toggle Multiplexer

Hello Brett,

If we use 'GROW' the algorithm for the multiplexer to increase the # of inputs, can it still be possible to use the push-button to select the inputs (this time more than two)? I was wondering if we can bring the look-up table entry into picture some how to do this.

Push1: selects input 1

Push2: selects input 2

Push3: selects input 3

Push4: selects input 1

Thanks in advance!

KKSL, you can get that functionality using the Toggle Counter:

https://wiki.analog.com/resources/tools-software/sigmastudio/toolbox/gpioconditioning/togglecounter

Thank you!

I will try out the toggle counter soon and report my findings.

I need a similar function. Not one that selects inputs but updates parameter of a particular cell.

Can I have a WRITE block that has 'Address' 'Bytes' 'Data' fields? Such a block can take inputs from a look-up table driven by a push button as mentioned below:

Push1: WRITES X Bytes to Y Location with Z1 data

Push2: WRITES X Bytes to Y Location with Z2 data

Push3: WRITES X Bytes to Y Location with Z3 data

Push4: WRITES X Bytes to Y Location with Z1 data

This and the above will help me implement some user accessible functions using GPIO, thus eliminating a possible use of microcontroller.

Thanks in advance!

The current SigmaDSP architecture does not allow the core to write directly back to memory. So unfortunately this is not possible.
