extra data in SigmaStudio
When I "Link Compile Download" a program to the Sigma DSP,

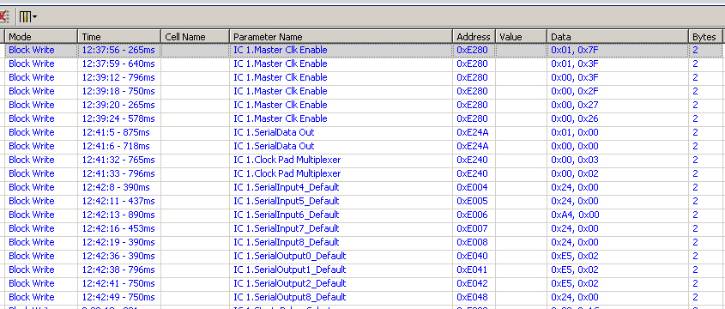

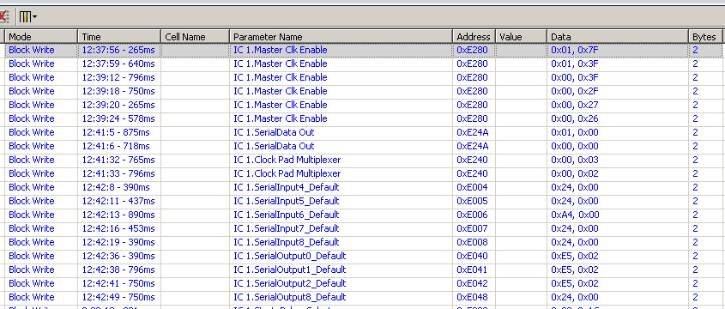

the capture window shows extra data at the beginning, which are not present
in either darasheet (initialization procedure), or exported files:
Are these data necessary ?
Also: I am using ADAU1446.
Since SigmaStudio has only generic ADAU144x device at configuration,
it shows loading data even to the registers not needed for the 1446.
Is it possible to tweak it or do I need to remove unneccessary transfers manually from the microcontroller loading routine ?
Thank you,
Gennady
Audio Signal Processors
adau1446
SigmaDSP Audio Processors
Hi Genp,

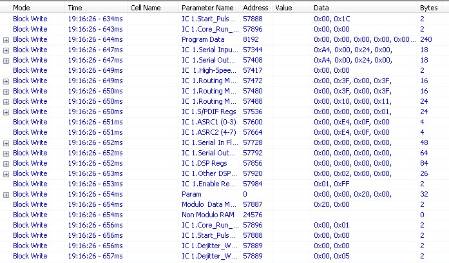

It's very odd that you're seeing multiple writes to the same address but with different values. I am currently not able to duplicate this here on my software. My typical download sequence is as follows:
Can you please post your project file (or even just a simplified version with processing blocks removed) so we can investigate this more?
Also, could you please list your software version information (which can be found in the Help -> About menu)?
This question has been assumed as answered either offline via email or with a multi-part answer. This question has now been closed out. If you have an inquiry related to this topic please post a new question in the applicable product forum.
Thank you,
EZ Admin
