write on ADAU1761 Ram

Hello Community, I am a new user of The ADAU1761 and I have been asked to upload the sigmaStudio program to the ADAU1761 Ram on a zedboard.

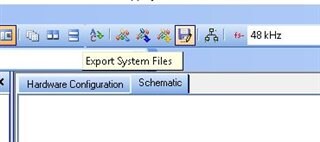

First, I checked the Datasheet and I found that we need to export a Program, Parameter and Data Ram. I found in my exported files of SigmaStudio 6 different files and I don't know which one I need to Upload on each caracteristics. Also how to put it

upon this tutorial : http://www.harald-rosenfeldt.de/2017/12/29/zynq-using-the-audio-codec-bidirectional-spi-ip-core/

I have found a function to write on the ADAU1761 that goes like this :

void adau1761_write(adau1761_config *pDevice,u16 addr, u8 wdata) {
XLlFifo_TxPutWord(&pDevice->fifo, (pDevice->chipAddr<<1) & 0xFF);
XLlFifo_TxPutWord(&pDevice->fifo, (addr>>8) & 0xFF );
XLlFifo_TxPutWord(&pDevice->fifo, addr & 0xFF );
XLlFifo_TxPutWord(&pDevice->fifo, wdata );
XLlFifo_iTxSetLen(&pDevice->fifo, 4 * pDevice->wordSize);
while(XLlFifo_RxOccupancy(&pDevice->fifo)!=4) {}
XLlFifo_RxGetWord(&pDevice->fifo);
XLlFifo_RxGetWord(&pDevice->fifo);
XLlFifo_RxGetWord(&pDevice->fifo);
XLlFifo_RxGetWord(&pDevice->fifo);
}

Since my project is similar, I think that I would have the same function but with different paraeters (u16 addr for the address of params or program and u8 wdata for the date we need to put on)

so my questions are:

what are the adresses of each part of the ram (PArameter, Program) ?

Is the data Ram the data we need to put in parameter and program or does it mean something elese ?

and what are the files that we need from SigmaStudio and whether we need to have to put the complete data 0x0 01 001 or just the part of the data we need ( 0*0 address+write command)?

I hope that you could help because I am really lost

Thank you

Audio Signal Processors

microcontroller

zedboard

spi communication

sigmastudio

SigmaDSP Audio Processors

adau1761

SigmaDSP

ram
